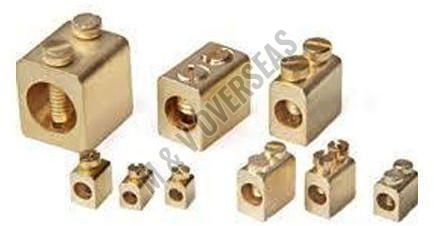

Brass Terminal Connectors

Types of Brass Contact Terminals:

• Pin Contacts: These are cylindrical terminals with a pin-like protrusion at one end, commonly used in connectors and plugs. They ensure reliable connections when inserted into corresponding sockets or receptacles.
• Socket Contacts: Designed to accept pin contacts, these terminals provide the female part of an electrical connection in connectors and receptacles.
• Ring Terminals: Also known as ring lugs or ring connectors, these terminals have a circular end that can be crimped or bolted onto a wire or cable, with the other end featuring a hole for attachment to a stud or terminal block.

Material Specifications:

• High-Grade Free-Cutting Brass
• Brass Alloys: CuZn39Pb3, CuZn39Pb2, CuZn38Pb1.5, CuZn37Pb2, CuZn40Pb2, MS 58, BS2874, IS 319 (Type I & II)
• ASTM Standards: C35300, C35330 DZR, C36000 (CDA 360), C36500, C37000, C37100, C37700, C37710, C38500
• BS Standards: CZ121, CZ122, CZ124, CZ128, CZ131, CZ132
• EN Standards: CW602N, CW603N, CW606N, CW608N, CW612N, CW614N, CW617N
• JIS Standards: C3601, C3602, C3603, C3604, C3605, C3712, C3771
• Custom brass material compositions are available upon request.

Product Range:

• Brass Contact Terminals available in various configurations, designed to fit specific electrical devices and applications.
• Standard and custom sizes are available to meet diverse industrial needs.

Thread Specifications: Available thread types include ISO Metric (MM), BA, BSW, BSP, BSPT, BSF, BSB, UNC, UNF, UNEF, NPT, NPS, and any other specified threads as per client requirements.

Accessories: We provide a complete range of accessories, including screws (Brass/Steel), washers, nuts, and connecting plates, as well as plastic and rubber components, ensuring full assembly as per customer specifications.

Applications:

• Electrical Connectors and Plugs: Used in appliances, electronics, and industrial equipment, providing secure connections.
• Terminal Blocks: Utilized in electrical panels to connect and distribute electrical conductors.
• Switches and Circuit Breakers: Brass contacts allow for the reliable opening and closing of electrical circuits, minimizing heat buildup.

Finish & Coating Options:

Our Brass Contact Terminals can be finished in Natural Clean, Nickel Plated, Electro-Tin Plated, Silver Plated, Copper Plated, Zinc Plated, Chrome Plated, or any other specified surface finish.
