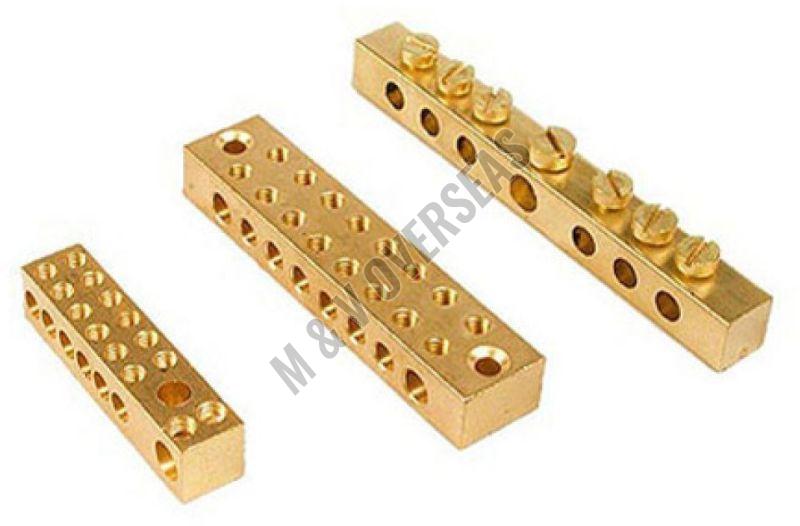

Brass Neutral Links

Material Specifications:

• High-Grade Free-Cutting Brass


• Brass Alloys: CuZn39Pb3, CuZn39Pb2, CuZn38Pb1.5, CuZn37Pb2, CuZn40Pb2, MS 58, BS2874, IS 319 (Type I & II)


• ASTM Standards: C35300, C35330 DZR, C36000 (CDA 360), C36500, C37000, C37100, C37700, C37710, C38500


• BS Standards: CZ121, CZ122, CZ124, CZ128, CZ131, CZ132


• EN Standards: CW602N, CW603N, CW606N, CW608N, CW612N, CW614N, CW617N


• JIS Standards: C3601, C3602, C3603, C3604, C3605, C3712, C3771


• Special brass material compositions are available upon request.

Product Range:

• Available in 2 Way to 108 Way configurations, with lengths up to 1.5 meters.


• Sizes range from M2 to M30, with special sizes up to M36, and standard sizes including 1/8’’, 5/32’’, 3/16’’, 1/4’’, 5/16’’, 3/8’’, 1/2’’, 3/4’’, 1’’, 1-1/2”, 2”, or custom designs based on your requirements.

Thread Specifications: Threads include ISO Metric (MM), BA, BSW, BSP, BSPT, BSF, BSB, UNC, UNF, UNEF, NPT, NPS, and any other specified threads per client requirements.

Accessories: We provide complete assemblies with screws (Brass/Steel), washers, nuts, connecting plates, and any necessary plastic or rubber components as per customer needs.

Applications: Our products are widely used as essential components in panel boards, electrical boards, and in the electronics and telecommunications industries.

Finish & Coating Options: Natural Clean, Nickel Plated, Electro-Tin Plated, Silver Plated, Copper Plated, Zinc Plated, Chrome Plated, or any specified surface finish.
